Asit Buharı Korozif Gazlara Dayanımlı Fanlar SEAT - İTALYA



Designed to exhaust fumes from highly corrosive environments such as laboratory fume cupboards, battery rooms, chemical plants, etc. The all polypropylene construction and thick walls ensure maximum protection against acids and corrosion. 50 to 15000 m3/H and 10 to 1 800 Pa of total pressure.



Housings : PP
Single block strong high density UV treated and recyclable polypropylene (PPH) with no welded joint. Reversible and rotable to any the 8 standard discharge positions by 45° increments. All fan mounting hardware in stainless steel.



Wheels : PP
Forward curved centrifugal type impeller made, of injection molded PPH. Fan wheel supplied with hub cap constructed of PPH. Wheels electronically and dynamically balanced to ISO 1940.



Motors
Direct drive, asynchronous, single or three phase, IP55. Single speed: three phase 230/400 V-50/60Hz, single phase 230V-50Hz. Explosion proof motors available on request. Motor is outside the airstream. Three phase motors speed adjustable by variable frequency inverter drive.



Motor Support
Several options: metal stand constructed of epoxy coated sheet metal(1), polypropylene motor pedestal(2) or roof unit kit(3).



ATEX
SEAT Series Fans are also available in ATEX Zone II, known outside Europe as explosion proof, category 3 G execution in accordance with ATEX directive 94/9/CE. ATEX declaration of conformity available on our web site www.seat-ventilation.com. The performances curves of explosion proof fans are identical with the ones of the standard version.



Performance
Fan performance based on tests conducted in accordance with AMCA 210-85 and ISO 5801.

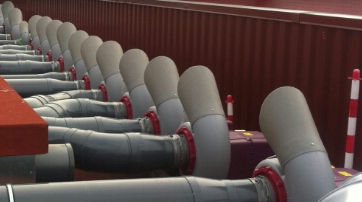

PP ( Polypropylen ) Asit Fanları SEAT - ITALYA

  • SEAT 15 - 100-700 m3h - 20-600 Pa

    SEAT 15

    Polypropylene centrifugal exhaust fan designed to extract highly corrosive gases with a maximum airflow of 700mch and the inlet and outlet dimension of 125mm  Available in ATEX version.

    • Airflow: 100-700 mch
    • Total pressure: 20-600 Pa
    • Inlet: 125mm
    • Material: polypropylene
    • Motor driving: direct
    • Motor support options : metal stand, enclosed pedestal or kit roof unit
    • ATEX : Zone II only with three phase motors
    • Motor: single phase or three phase
    • TEKNİK ÖZELLİKLER    -    Diğer Bilgiler
  • SEAT 20 - 300-1500 m3h - 50-1400 Pa

    SEAT 20

    Polypropylene centrifugal exhaust fan designed to extract highly corrosive gases with a maximum airflow of 1500mch and the inlet and outlet dimension of 160mm. Available in ATEX version.

    • Airflow : 300-1500 mch
    • Total pressure: 50-1400 Pa
    • Inlet: 160mm
    • Material: polypropylene
    • Motor driving: direct
    • Motor support options : metal stand, encloised pedestal or kit roof unit
    • ATEX :  Zone II only with three phase motors
    • Motor: single or three phase
    • Frequency : 50 Hz or 60 Hz , frequency inverter  optional

    Specifications ATEX

    Specifications SEAT 20

  • SEAT 25 -  500-2500 m3h - 60-1400Pa

    SEAT 25

    Polypropylene centrifugal exhaust fan designed to extract highly corrosive gases with a maximum airflow of 2500mch and the inlet and outlet dimension of 200mm. Available in ATEX version.

    • Airflow : 500-2500 mch
    • Total pressure : 60-1400Pa
    • Inlet : 200mm
    • Material : polypropylene
    • Driving : direct
    • Motor support options : metal stand, enclosed pedestal or kit roof unit
    • ATEX : available in Zone II
    • Moteur : single or three phase
    • Frequency : 50 Hz or 60 Hz, frequency inverter optional

    Specifications ATEX

    Specifications SEAT 25

  • SEAT 30 - 1000-4500 m3h - 80-800Pa

    SEAT 30

    Polypropylene centrifugal exhaust fan designed to extract highly corrosive gases with a maximum airflow of 4500mch and the inlet and outlet dimension of 250mm. Available in ATEX version.

    • Airflow : 1000-4500 mch
    • Total pressure : 80-800Pa
    • Inlet : 250mm
    • Material : polypropylene
    • Motor driving : direct
    • Motor support options : metal stand, enclosed pedestal or kit roof unit
    • ATEX : Zone II only with three phase motors
    • Moteur : single or three phase
    • Frequency : 50 Hz or 60 Hz, frequency inverter  optional

    Specification ATEX

    Specifications SEAT 30

  • SEAT 35 - 2000-9000 m3h - 200-1500Pa

    SEAT 35

    Polypropylene centrifugal exhaust fan designed to extract highly corrosive gases with a maximum airflow of 9000mch and the inlet and outlet dimension of 315mm. Available in ATEX version.

    • Airflow : 2000-9000 mch
    • Total pressure : 200-1500Pa
    • Inlet : 315mm
    • Material : polypropylene
    • Driving : direct
    • Motor support options : metal stand, enclosed pedestal or kit roof unit
    • ATEX : Zone II only with three phase motors
    • Moteur : single or three phase
    • Frequency : 50 Hz or 60 Hz, frequency inverter  optional

    Specification Atex

    Specification SEAT 35

  • SEAT 50 - 5000-15000 m3h - 300-1800Pa

    SEAT 50

    Polypropylene centrifugal exhaust fan designed to extract highly corrosive gases with a maximum airflow of 15000mch, the inlet dimension of 600mm  and outlet of 500mm. Backward centrifugal type impeller made of injected molded PPH with a patented process. Delivered with a protection plate around the housing, metal stand, weather protection cover and three phase motor with a start up by frequency inverter.

    • Airflow : 5000-15000 mch
    • Total pressure : 300-1800Pa
    • Inlet : 600mm
    • Material : polypropylene
    • Motor driving : direct
    • Motor support: metal stand only
    • ATEX : available soon
    • Moteur : three phase

    Important: Start up by frequency inverter

    Specifications SEAT 50
