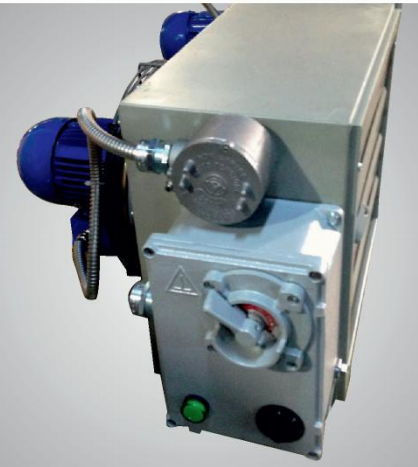

Wall type Explosion-Proof Electric ATEX Fan Heaters



Application
Paint room, petrochemical plant, refinery, chemical plant, mining industry, sawmill, army warehouse


Motors
EX61G 220V 50hz IP44/IP55 B3L(D) 0,37KW or 0,55KW
Monophase and EX61G 380V 50hz IP44/IP55 B3L(D) 0,37KW Threephase
motors
Atex Class : Zone1 : Atex IIB T4





Temperature code
1 to 30kW: T2bt4 threephase –monophase Class 1 T3CB. IP44


Heat exhanger
long life black sheet metal or corrosion resistant coils
High grade metal-sheathed elements
fins with propylene glycol/water solution.
Long-life, low watt density.
Heat Transfer Oil 32 High Performance Heat transfer Oils
Liquid Type: Hydrocarbon mixtures is used (Propylene glycol)


Control
220V or 380V control
built-in or wall thermostat.
thermostat guard.
disconnect switch.


Installation
Mounting L brackets are fixed on the units. Wall fixing
apparatuses are optional.


Construction
14-gauge steel cabinet.
Adjustable louvers.
Fan Guard: painted black sheet metal.


Protection
High-limit temperature controls: one with automatic reset at (60C) temperature automatic shut down.


Color
Standard: White Ral 9002 (another color is optional)



Finish
Standard: polyester powder paint. (epoxy paint is optional)



Voltage
230V or 380V - 1 or 3-phase.


EX-PROOF FAN HEATERS
