EB Serisi EX-PROOF fanlar, ATEX direktiflerine uygundur. Flameprof T4 Sıcaklık Sınıfındadır Motor Sınıfı:II2G EEexd IIBT4
Fırın boyalı sac gövdeli • Eexe II koruma ve T4 sıcaklık sınıfı • Ürünün tamamını kapsayan ATEX sertifikalı • Üç fazlı, IP 55 motor koruma sınıfı
Montaj plakaları ve motor taşıyıcı gövdeleri yüksek kaliteli sacdan mamuldür.
Tüm motorlar IP55 sınıfı ve Class F yalıtımlıdır. Bununla birlikte tüm motorla rulman yataklıdır.
II2G EEexd IIBT4 ( ZON1 - ZON2 ) Elektrik Girişi Trifaze 400V-50Hz Tüm motorlar elektrik bağlantılı terminallidir. Terminaller ilgili standartlara uygun özelliktedir.



EB EX ATEX

Explosion Proof Certified Axial fans to extract air and fumes directly outside through short ducting, wall or panel mounting, in compliance with ATEX Directive 84/9/EEC effective from July 1st 2003 in EU.



•    Suitable for applications in commercial and industrial

      environments where the risk of explosion is high and

      where  the surrounding atmosphere contains gas, vapours

      or highly inflammable steam;

•    The whole product and not just the electrical parts, has

      been certified by CESI Institute with CESI n°3 ATEX 251

      certificate;

•    Fan group II, cat. 2 for gases, construction safety C, max

      surface temp. T4 (135°C);

•    Classified for zones 1 and 2;

•    This approval has required specific safety tests and

      proper examinations on products to verify how the

      adopted solutions have satisfied the essential Directive

      requirements;

•    Steel plated body protected by an epoxy-based anticorrosive

      paint;

•    Impeller made of VO reinforced conductive nylon;

•    Exd-II B - T4, ball bearing class F insulation motor IP55

      protected;

•    Max temperature of extracted air: 40°C;

•    Reversibility: all models;

•    Reference Standards: EN 13463-1; EN 13463-5; EN 14986

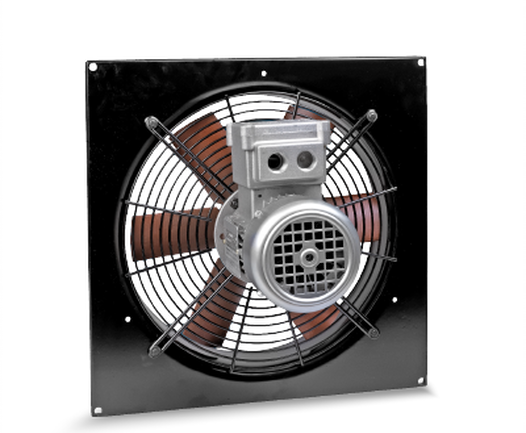

EB Seri EXPROOF ATEX Duvar Tipi Fanlar

  • EXPROOF DUVAR TİPİ FAN 900 m3/h EB 25 4T - EX

    EXPROOF DUVAR TİPİ FAN 900 m3/h EB 25 4T - EX
    KAPASİTE 900 (m3/h)
    FAZ /W /A / rpm : 3/100/0,39/1.460

  • EXPROOF DUVAR TİPİ FAN 1500 m3/h EB 30 4T - EX

    Duvar Tipi EXPROOF Fan 1500 m3/h EB 30 4T - EX
    KAPASİTE 1500 (m3/h)
    3 Faz /125 W /0,40 Amp /1.430 d/d


  • EXPROOF DUVAR TİPİ FAN 2250 m3/h EB 35 4T - EX

    EXPROOF DUVAR TİPİ FAN 2250 m3/h EB 35 4T - EX
    KAPASİTE 2250 (m3/h)
    400V 3 Faz /150 W /0,42 Amp /1.400 d/d

  • EXPROOF DUVAR TİPİ FAN 4500 m3/h EB 50 4T - EX

    EXPROOF DUVAR TİPİ FAN 4500 m3/h EB 50 4T - EX
    KAPASİTE 4500 (m3/h)
    FAZ /W /A / rpm : 3/230/0,45/1.270

  • Dökümanlar ;

  • İngilizce :

    EB EX ATEX

    Explosion Proof Certified Axial fans to extract air and fumes directly outside through short ducting, wall or panel mounting, in compliance with ATEX Directive 84/9/EEC effective from July 1st 2003 in EU.



    •    Suitable for applications in commercial and industrial

          environments where the risk of explosion is high and

          where  the surrounding atmosphere contains gas, vapours

          or highly inflammable steam;

    •    The whole product and not just the electrical parts, has

          been certified by CESI Institute with CESI n°3 ATEX 251

          certificate;

    •    Fan group II, cat. 2 for gases, construction safety C, max

          surface temp. T4 (135°C);

    •    Classified for zones 1 and 2;

    •    This approval has required specific safety tests and

          proper examinations on products to verify how the

          adopted solutions have satisfied the essential Directive

          requirements;

    •    Steel plated body protected by an epoxy-based anticorrosive

          paint;

    •    Impeller made of VO reinforced conductive nylon;

    •    Exd-II B - T4, ball bearing class F insulation motor IP55

          protected;

    •    Max temperature of extracted air: 40°C;

    •    Reversibility: all models;

    •    Reference Standards: EN 13463-1; EN 13463-5; EN 14986
